Caps, Adapters & Strainers

CAPS, ADAPTERS AND STRAINERS

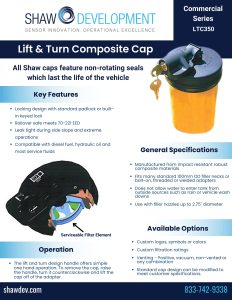

All Shaw caps feature non rotating seals which last the life of the vehicle.

Locking design with standard padlock or built in keyed lock
Rollover safe meets 70/221 EEC. Leak tight during side slope and extreme operations
Compatible with diesel fuel, hydraulic oil, and most service fluids

SPECIFICATIONS	Details
System Specifications	Manufactured from impact resistant robust composite materials Fits many standard 100 mm OD filler necks or bolt-on, threaded or welded adapters Does not allow water to enter tank from outside sources such as rain or vehicle wash downs Use with filler nozzles up to 2.75″ diameter
Operation	The lift and turn design handle offers simple one hand operation. To remove the cap raise the handle, turn it counterclockwise, and lift the cap off of the adapter.
Available Options	Custom logos, symbols or colors Custom filtration ratings Venting-Positive, Vacuum, non-vented or any combination Standard cap design can be modified to meet customer specifications
Filtration and Venting Specifications	Field serviceable filter element 120 and 10 micron nominal filters available Low vacuum cracking pressures which reduce stresses on fuel tank and fuel pump and may be used on composite fuel tanks Positive venting to relieve pressure within tank caused from thermal expansion, but no leakage on side slope or in rollover situations
Strainer Options	Perforated Metal, or Screen Mesh in any size or length.
Filler Neck & Adapters	Metallic or plastic – weld on, bolt on, thread on, or press-in options.

All Shaw caps feature non rotating seals which last the life of the vehicle.

Locking design with standard padlock or built in keyed lock
Rollover safe meets 70/221 EEC. Leak tight during side slope and extreme operations
Compatible with diesel fuel, hydraulic oil, and most service fluids

SPECIFICATIONS	Details
System Specifications	Manufactured from impact resistant cast aluminium and composite materials Fits standard 4″[100 mm] filler openings Does not allow water to enter tank from outside sources such as rain or vehicle wash downs Use with filler nozzles up to 3.25″ diameter
Operation	The lift and turn design handle offers simple one hand operation. To remove the cap raise the handle, turn it counterclockwise, and lift the cap off of the adapter.
Available Options	Custom logos and fluid symbols available Custom colors and finishes available Venting:Non-venting, Positive venting, Vacuum venting, or any combination Special covers and debris guards for severe military applications
Filtration and Venting Specifications	Field replaceable filter cartridge Low cracking pressures which reduce stresses on fuel tank and fuel pump and enable usage with composite tanks Positive venting to relieve pressure within tank caused from thermal expansion, but no leakage on side slope or in rollover situations
Strainer Options	Perforated Metal, or Screen Mesh in any size or length.
Filler Neck & Adapters	Metallic or plastic – weld on, bolt on, thread on, or press-in options.
Service Applications	Fuel Hydraulic
Color	Custom
Venting Types	Any combination Non-venting Positive venting Vacuum venting
Nozzle Diameter	3.25 in

Fits 4.0″ Modified Buttress Thread

SPECIFICATIONS	Details
Key Features	Locking Design With Standard Padlock Rollover Safe Meet 70/221 EEC. Leak Tight During Side Slope and Extreme Operations. Compatible with Diesel Fuel, Hydraulic oil, and Most Service Fluids
Service Applications	Fuel Hydraulic
Size	4 in

Fits 3.5″ Modified Buttress Thread
Fits 3.5″ Modified Buttress 100 mm OD or Bolt On Thread
This Economical Threaded Cap Offers:

SPECIFICATIONS	Details
Available Filters	120, 10 and 4 Micron Nominal Filters Available
Service Applications	Fuel Hydraulic
Size	3.5 in
